Ballistic Data for 5.56 NATO Mach3 Ammunition
LOT 0626001
| Manufacturer: | Desert Tech Munitions |
| Caliber: | 5.56 NATO (.224") .22 CAL |
| Projectile: | Copmetition Grade Match |
| Projectile Type | FMJ, HPBT, Lead Core |
| Projectile Weight: | 77 Grain |
| Projectile Length: | .991 Inch |
| Sectional Density: | .219 Inch |
| Muzzle Velocity: | 2955 |
| Ballistic Coeficient: | G1: .349 |
| G7: 0.176 | |
| Projectile Diameter | .224 Inch |
| Usage: | Long Range, Target, Competiton |
| Test Barrel Length | 18 Inch |
| Recommended Barrel Twist | 1-8" or faster |

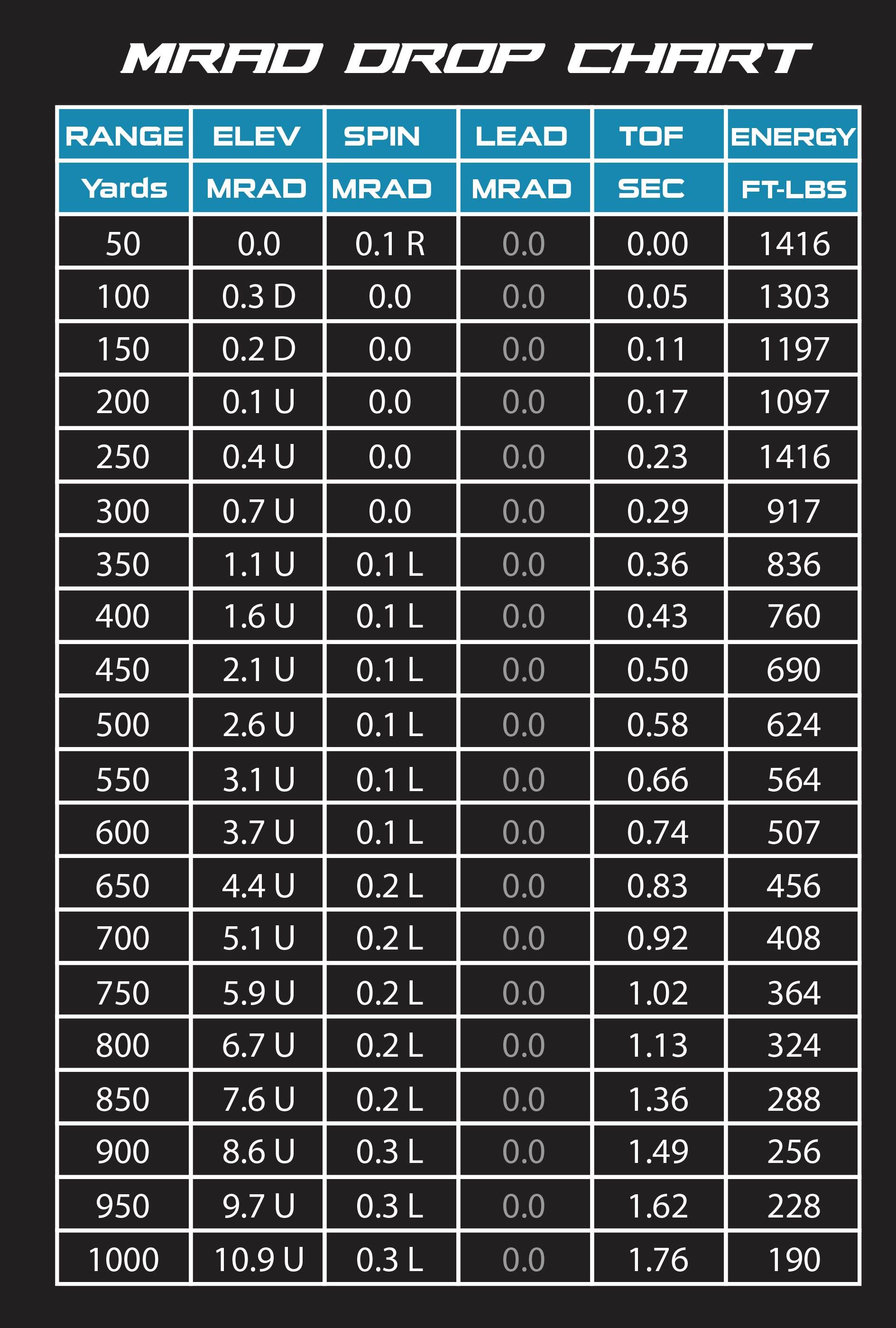

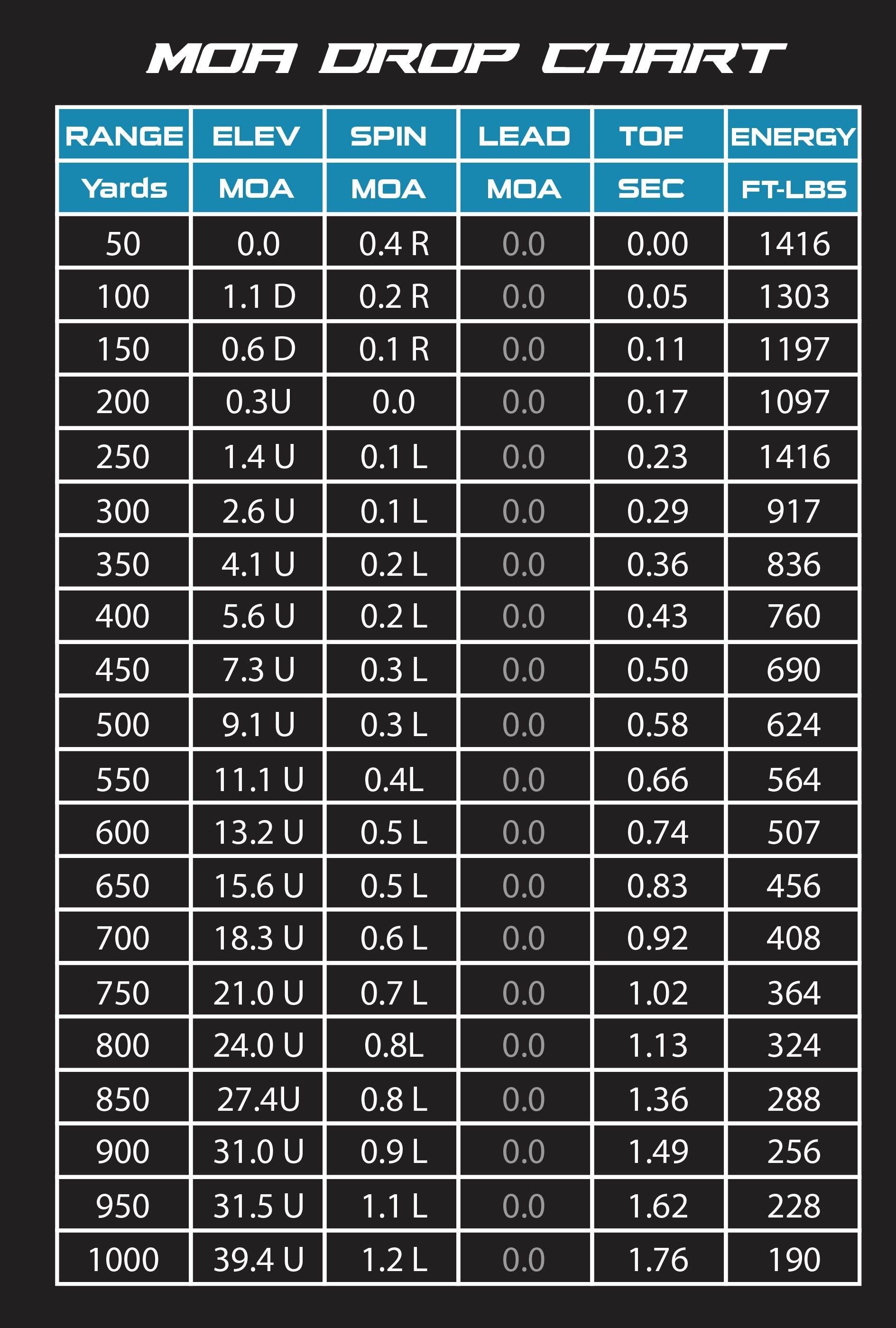

DROP CHARTS
The following drop charts are based off a 50 yard Zero, using a 18" Barrel, 1-8 twist using the above ballistic data. Atmospheric conditions: 78 degrees F. 3000 ft density altitude, zero wind.
RANGE YARDS: Distance to target
ELEV MRAD: Elevation adjustment in Milradians (U=up, D=down)
ELEV MOA: Elevation Adjustment in Minutes Of Angle (U=up, D=down)
SPIN MRAD: Spin Drift Adjustment, add to lead/windage in Milradians
SPIN MOA: Spin Drift Adjustment, add to lead/windage in Minutes Of Angle
LEAD MRAD: Windage or LEAD adjustment for wind direction or moving target
TOF SEC: Time of flight in seconds for projectile to impact target at refereced distance
ENERGY FT-LBS: Projectile energy on impact
TIP: Download image to your phone for quick reference.
TIP: Download image to your phone for quick reference.
Get personalized drop charts just like these for your own rifles and loads with TRASOL. The most accurate ballistic app for your I-Phone and other Apple products.
Instantly import weather and environmental data with a single touch. Access an extensive pre-installed bullet library, easily enter in variables such as slope, zero offset, cold bore shift, elevation and more for perfect first-round impacts every time!
Use the interactive heads-up display to easily calculate moving target speeds, wind directions, slolpe and distance. Get instant drop data on ANY distance up to 3000 yards and beyond. Build custom dope cards and save them to your phone for quick, easy access even without internet access. Download TRASOL from the app-store now: FREE Trasol Ballistic Calculator
*Average Muzzle Velocity will vary depending on the condition and type of rifle used, barrel length, altitude, ambient temperatures, wind, and other unforseen factors. The average velocity listed is taken with our test rifle to 100 yards in average temperature conditions and should be a reliable velocity if you're equimpent is similar. A chronograph is recommended for exact velocity measurements.
